CST1808 Coating impedance analyzer

Name: CST1808 Coating impedance analyzer
Brand: Wuhan Corrtest Instruments Corp., Ltd.
SKU: CST1808
Price: 5,625.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Corrtest

Certification: ISO9001

Model Number: CST1808

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                CST1808 Coating impedance analyzer, CST1808 impedance analyzer, Coating impedance analyzer


Application:	Corrosion	Portability:	Portable
Number Of Channels:	4	Weight:	1kg
Impedance Measurement Range:	1e3Ω-1e10Ω

Application:	Corrosion
Portability:	Portable
Number Of Channels:	4
Weight:	1kg
Impedance Measurement Range:	1e3Ω-1e10Ω

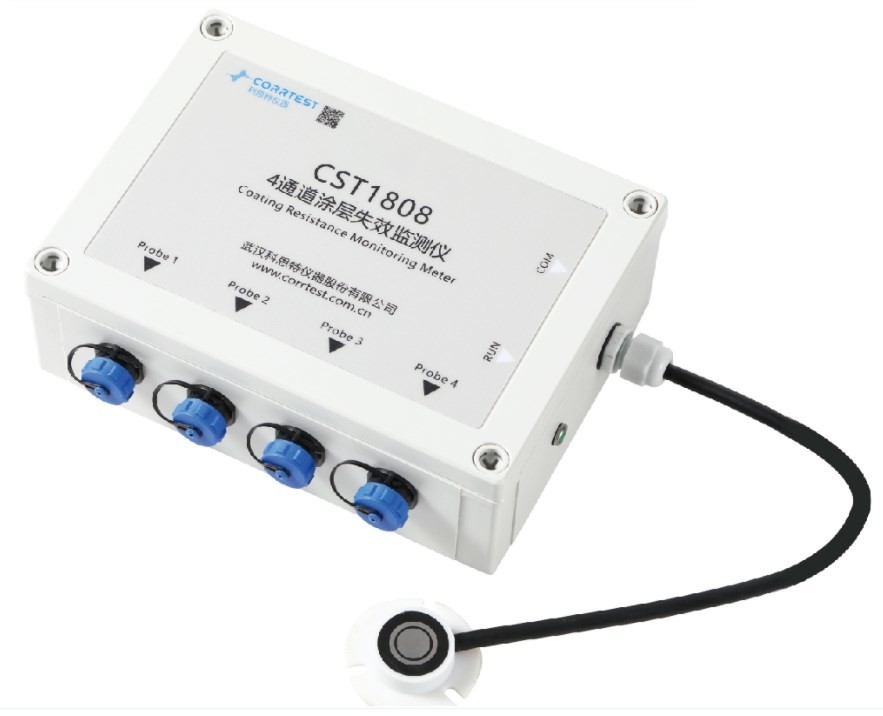

CST1808 Coating impedance analyzer

CST1808 Coating impedance analyzer

Based on the fix-frequency impedance measurement tech-nique, the CST1808 Coating impedance analyzer can be used in-site to evaluate the degradation degree and the service life of coatings on any metal structures.

Technical Advantages

♦ Fixed-frequency(10Hz~100KHz) impedance measurement for coatings(1e3Ω to 1e10Ω);

♦ The dielectric constant, water content, and porosity of the coating can be calculated;

♦ In-site monitoring of the degradation of coatings in atmospheric or artificial environments

Specifications

Number of channels: 4

Power supply: DC12V

Impedance measurement range: 1e3Ω~1e10Ω

Dimensions: 180mm×130mm×60mm

Input impedance: ≥10¹²Ω

Weight: 1.0kg

Frequency range: 10Hz~100KHz

Operating temperature: -20°C~60°C

AC signal amplitude: 10mV~1000mV

Operating humility: ≤80%

Storage: 8Mbyte, 100,000 records

Enclosure materia: plastic

Communication: RS485,4G, Lora wireless, Modbus protocol

Degree of protection: IP67

Applications

CST1808 can be used in-site to evaluate the degradation degree and the service life of coatings

Coating impedance probe

The coating impedance probe is designed based on a 2-electrode configuration, which can be used to measure the coating impedance on any coated steel structures in-site.

Product supply list

CST1808 coating impedance analyzer

CP-181 corrosion probe

CSkit corrosion monitoring software

CST610 wireless data transceiver(optional)
