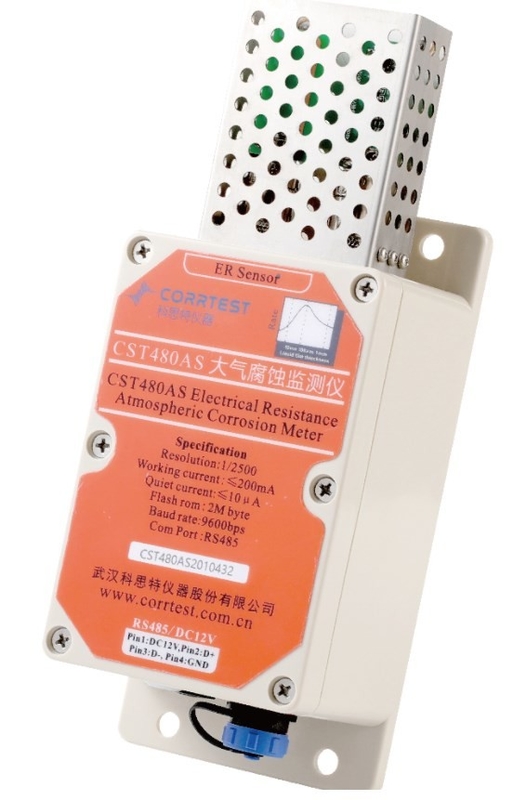

CST480AS Atmospheric Corrosion Meter

Name: CST480AS Atmospheric Corrosion Meter
Brand: Wuhan Corrtest Instruments Corp., Ltd.
SKU: CST520
Price: 5,625.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Corrtest

Certification: ISO9001

Model Number: CST520

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Delivery Time: 15 working days

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                Atmospheric Corrosion Meter, CST480AS Corrosion Meter, CST480AS Atmospheric Corrosion Meter


Sensing Track Cu Thickness:	10μm, 30μm	Communication:	RS485, Modbus Protocol
Corrosion Thickness Loss Resolution:	1nm	Weight:	420g

Sensing Track Cu Thickness:	10μm, 30μm
Communication:	RS485, Modbus Protocol
Corrosion Thickness Loss Resolution:	1nm
Weight:	420g

CST480AS Atmospheric Corrosion Meter

CST480AS Atmospheric Corrosion Meter

Based on the electrical resistance ratio of ultrathin Cu/Ag/Fe wires or foils, the CST480AS Atmospheric Corrosion Metercan gauge the thickness loss of metals in outdoor or indoor atmospheres and further evaluate the corrosion safety of electronic equipment, such as computers and data centres.

Technical Advantages

♦ Built-in AC excitation, automatic temperature compensation technique;

♦ Monitoring the corrosion rate of Cu/Ag/Fe and temperature & humidity in indoor atmospheres;

♦ High metal thickness loss resolution(1nm);

♦ Supports RS485, 4G, Lora and Modbus protocol.

Specifications

Sensing track Cu thickness: 10μm, 30μm

Communication: RS485, Modbus protocol

Corrosion thickness loss resolution: 1nm

Power supply: DC12V or 3.6V Li-S battery

Temperature measurement range: -30~+60℃, ±1℃

Weight: 420g

Humility measurement range:0%~100%RH, ±3%

Operating temperature: -30℃~60℃

Data storage capacity: 8 Mbyte, 100,000 records

Operating humidity:≤80%

RTC clock error: <1 min/month

Enclosure material: plastic

Measurement intervals: 1~24h

Applications

CST480AS can gauge the thickness loss and corrosion rate of Cu, Ag, Sn, Fe foil in outdoor or indoor atmospheric environments.

Product supply list

CST480AS Atmospheric Corrosion Meter

CP-42 Environmental monitoring Probe 1pc

CP-43 Temperature, humidity and atmospheric pressure sensor 1pc

CSkit Corrosion monitoring system software 1 set
