Product Details
Place of Origin: Wuhan, China
Brand Name: Corrtest
Certification: CE, ISO9001
Model Number: CS920 CS920L CS921 CS922 CS923 CS924 CS927 CS945
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard Box
Delivery Time: 5-10 working days
Payment Terms: T/T, D/P
Supply Ability: 3000set/year
Pressure Range: |
0-100 KPa |
Size: |
10 Cm X 5 Cm X 3 Cm |
Application: |
Used For Measuring And Analyzing Electrochemical Reactions |
Weight: |
100grams |
Temperature Range: |
0-50°C |
Material: |
Stainless Steel |
Package Contents: |
1 Electrochemical Accessory, 1 User Manual |
Compatibility: |
Compatible With All Electrochemical Devices |
Accuracy: |
±0.01 MV |
Color: |
Silver |
Warranty: |
1 Year |
Pressure Range: |
0-100 KPa |
Size: |
10 Cm X 5 Cm X 3 Cm |
Application: |
Used For Measuring And Analyzing Electrochemical Reactions |
Weight: |
100grams |
Temperature Range: |
0-50°C |
Material: |
Stainless Steel |
Package Contents: |
1 Electrochemical Accessory, 1 User Manual |
Compatibility: |
Compatible With All Electrochemical Devices |
Accuracy: |
±0.01 MV |
Color: |
Silver |
Warranty: |
1 Year |

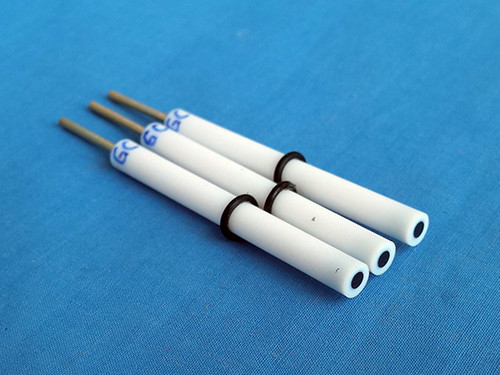

Glassy Carbon Working Electrode
| Part# | Product | Picture | Specification |
|
CS920 |
Glassy carbon working Electrode |
|
Ø3mm |
| Ø2mm | |||
| Ø4mm/Ø5mm | |||
| CS920L | L-shape glassy carbon working electrode | |
Ø3mm |
| Ø2mm | |||
| Ø4mm/Ø5mm | |||
| CS921 | Metal Electrode | |
Carbon steel,stainless steel,copper Usually used with CS930 cell for corrosion study Working area:0.5cm2 |
| CS922 | Platinum working electrode | |
99.95%,Ø2mm |
| 99.95%,Ø3mm | |||
| CS923 | Gold working electrode | |
99.95%,Ø2mm |
| 99.95%,Ø3mm | |||
|
CS924 |
Silver working electrode | |
Ø2mm/Ø3mm |
| Titanium WE | Ø2mm/Ø3mm | ||
| Copper WE | Ø2mm/Ø3mm | ||
| Aluminum WE | Ø2mm/Ø3mm | ||
| Nickel WE | Ø2mm/Ø3mm | ||
| Zinc WE | Ø2mm/Ø3mm | ||
| Lead WE | Ø2mm | ||
| Cadmium WE | Ø2mm | ||
| Iron WE | Ø2mm | ||
| Palladium WE | Ø2mm | ||
|
CS927 Electrodes used in RRDE/ RDE rotator |
RDE(internal-screw) Glassy carbon disk electrode 3mm/4mm/5mm |
|
Electrode is internal-screw type. Compatible to PINE's RDE equipment with external-screw rod |
|
RDE(external-screw) Glassy carbon disk electrode 3mm/4mm/5mm |
|
Electrode is external-screw type.Compatible to PINE's RDE equipment with internal-screw rod. | |
| RRDE | |
RRDE-Glassy carbon disk,Pt ring electrode Compatible to PINE's RRDE rotator equipment |
|
| RDE | |
Compatible to ALS RRDE rotator. Glassy carbon disk electrode- Disk diameter 5mm, |
|
| RRDE | |
Compatible to ALS rotator. Glassy carbon disk,Pt ring working electrode OD of ring electrode 7mm,Inner diameter 5mm;disk diameter 4mm,Insulator diameter 12mm,length 25mm |
|
| Pt Wire counter electrode | |
Compatible to ALS rotator Platinum counter electrode φ0.5*230mm |
|
| CS945 |
Specimen clamp **The price is for one electrode |
|
Suitable for plate specimen with thickness:<1mm. |
